Description

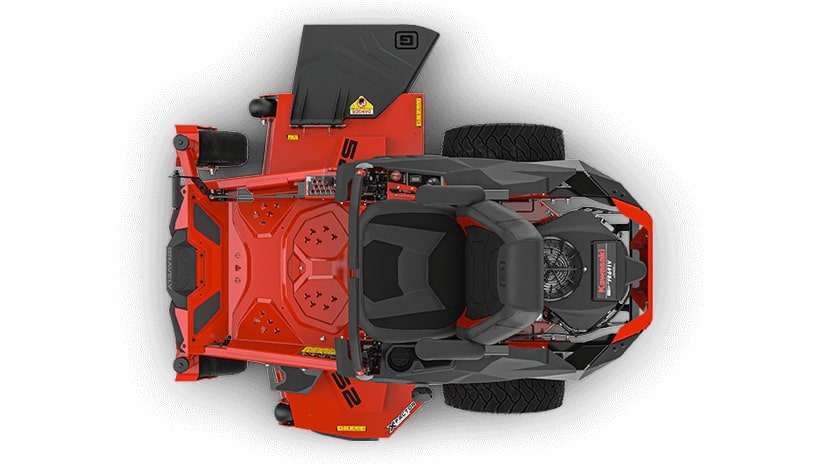

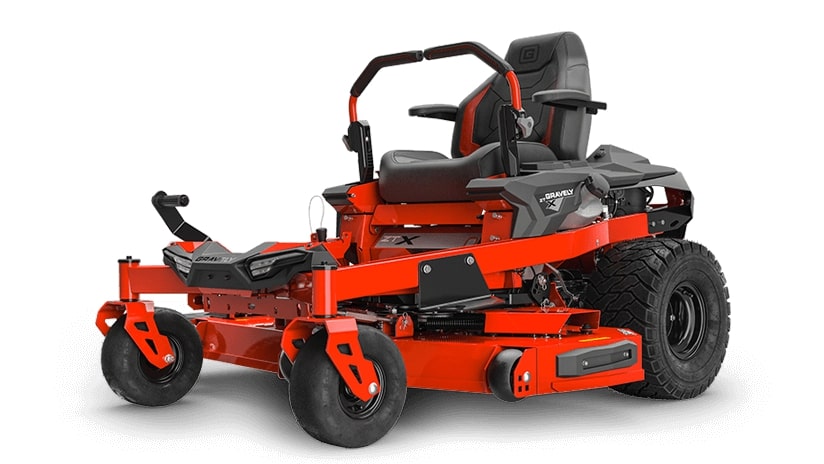

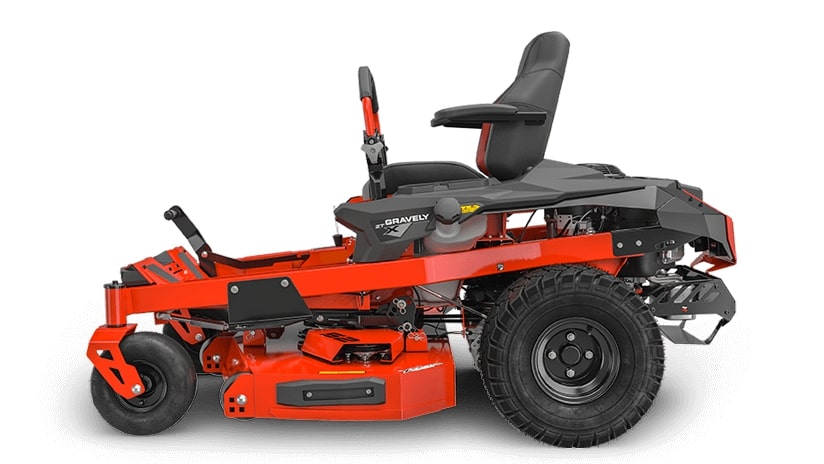

ZT XL 48″ Kawasaki Zero Turn Mower

This is the residential lawnmower that’s often mistaken for a commercial mowing machine. It’s no surprise with its heavy-duty construction, professional features, and legendary Gravely performance. When you have a ZT X on your lawn, your neighborhood will know you’re upping your lawn game to the next level.

Specifications:

Power Train

• Engine: Kawasaki® FR691V
• Horsepower: 23 hp
• Engine Displacement: 726 cc / 44.3 in³
• Fuel Type: Gasoline
• Fuel Capacity: 3.5 gal / 13.2 liters
• Drive System: Hydro-Gear® Serviceable EZT® Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Integrated Parking Brake
• Driver Position: Sit-down

Performance

• Ground Speed (Forward): 7 mph / 11.3 kph
• Ground Speed (Reverse): 3 mph / 4.8 kph

Wheels

• Front Wheels: 11.0 x 6.0 in – 5.0 in (27.9 x 15.2 cm – 27.9 cm)
• Rear Wheels: 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm)

Electrical System

• Battery Capacity: 190 CCA
• Battery Voltage: 12 V
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Size: U1 Compatible
• Number of Batteries: 1

Deck System

• Deck Size: 52 in / 132.1 cm
• Cutting Width: 52 in / 132.1 cm
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated X-Factor®
• Spindle Type: Mechanical
• Discharge Configuration: Side discharge
• Cutting Height Range: 1.5 in – 4.5 in (3.8 cm – 11.4 cm)
• Coverage per Hour: 3.6 acres / 1.5 hectares

Dimensions & Weight

• Assembled Weight: 695 lbs
• Length: 74.5 in / 189.2 cm
• Width (Chute Up): 55.6 in / 141.2 cm
• Width (Chute Down): 66.7 in / 169.4 cm

Width	Weight	Height	Length
0 Inch	695 Pounds	0 Inch	0 Inch
